Product Introduction

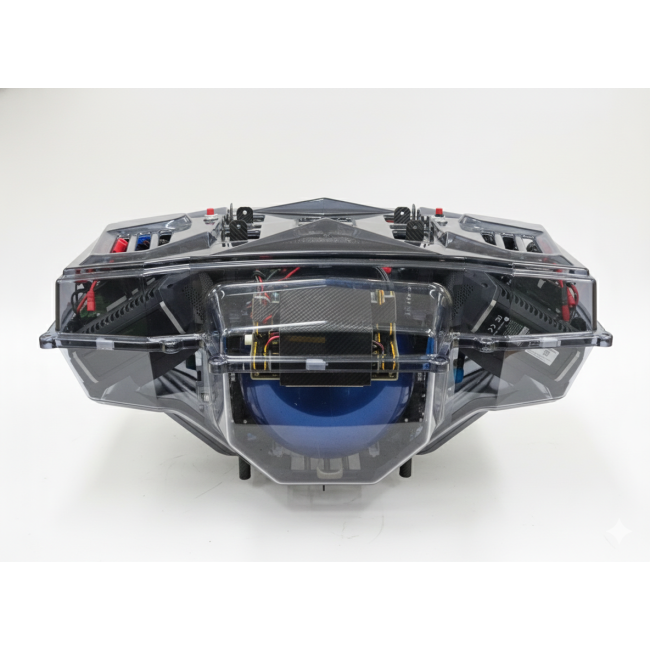

A1 4.8kW
The A1 Power Pack 4.8kW is a fuel cell module optimized for both VTOL and fixed-wing applications. Utilizing lightweight fuel cell technology and a modular structure, it provides users with greater flexibility and significantly longer flight times.
Clean and Eco-Friendly
Low Operational Noise
Highly Safe and Reliable Design
Ideal for VTOL
Replaceable Batteries
Warranty Period
Product Summary Information
| Maximum Continuous Power | 4,800W | |
| Maximum Power(Using Hybrid Battery) | up to 8,000W | |
| Output Voltage (DCDC Adjustable) | Configurable between 50V and 70V | |
| Fuel Cell Power Module (Fuel Cell) | Size | 210 x 105 x 105mm |
| Weight | 1,450g | |
| Hydrogen Regulator | Weight | 315g |
| Max Regulator (Cylindar) Pressure | 350bar/5,000psi | |
| Output Pressure | 0.9bar ± 0.1/13psi ± 1.5psi | |
| Max Cylindar Weight | 10kg | |
| Standard Hybrid Battery Configuration | Configuration | 2 x 6S |
| Size | 135 x 40 x 40 mm | |
| Weigth | 535g | |
| Capacity | 3,300mAh | |
| Peak Power | 4,800W | |
| Operating Environment | Start Temperature | 5°C to 40°C |
| Operating Temperature | -5°C to 40°C | |
| Max Altitude | 5,000m | |
| Stotage Temperature | -10°C to 70°C | |
| System Warranty | 1000hour | |
